Flagship Architectural Marine Grade • Hyderabad
MM WOOD Boards & Laminates Private Limited
Strength, perfected.
Flagship structural plywood, engineered in Hyderabad for a world that demands endurance.
Product Classification
Engineered to Exceed Indian Standards
Select a grade below to inspect technical specifications, adhesive formulation, and laboratory certifications.
IS:710 • MM MARINE GRADE

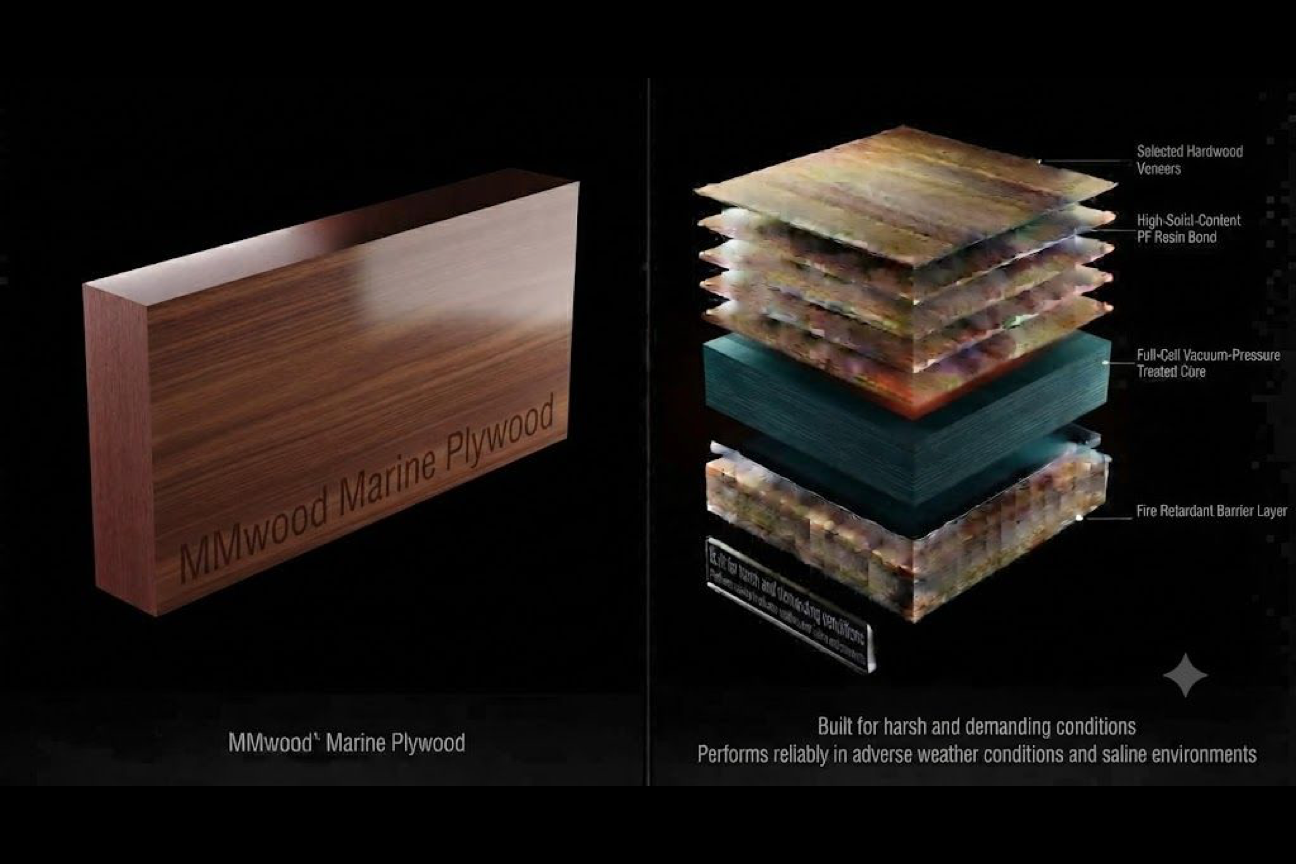

MM Marine (IS:710) Plywood
The pinnacle of structural plywood. Manufactured using selected high-density Gurjan timber veneers bonded with undiluted Phenol Formaldehyde synthetic resin under extreme temperature and pressure.
Micro-Structural Architecture
The 7-Layer Calibrated Matrix
Click through the cross-banded layers below to understand how MM WOOD Boards eliminates core gaps and distributes bending stresses.
01
Top Face Veneer (A-Grade Gurjan)
0° AXIS
02
Cross-Banded Core Layer 1
90° CROSS
03
Inner Core Layer 1 (High-Density Gurjan)
0° AXIS
04
Center Core Layer (Neutral Axis Key)
90° CENTER
05
Inner Core Layer 2 (Balanced Compression)
0° AXIS
06
Cross-Banded Core Layer 2
90° CROSS
07
Bottom Face Veneer (Hallmark Stamp)
0° AXIS
SURFACE GRADE A
Precision Face Veneer (0.6mm Gurjan)
Hand-graded natural Gurjan timber veneer selected for seamless texture and minimal grain distortion. Treated for natural wood sheen and branded with the authentic MM WOOD Boards hallmark.
Laboratory Verification

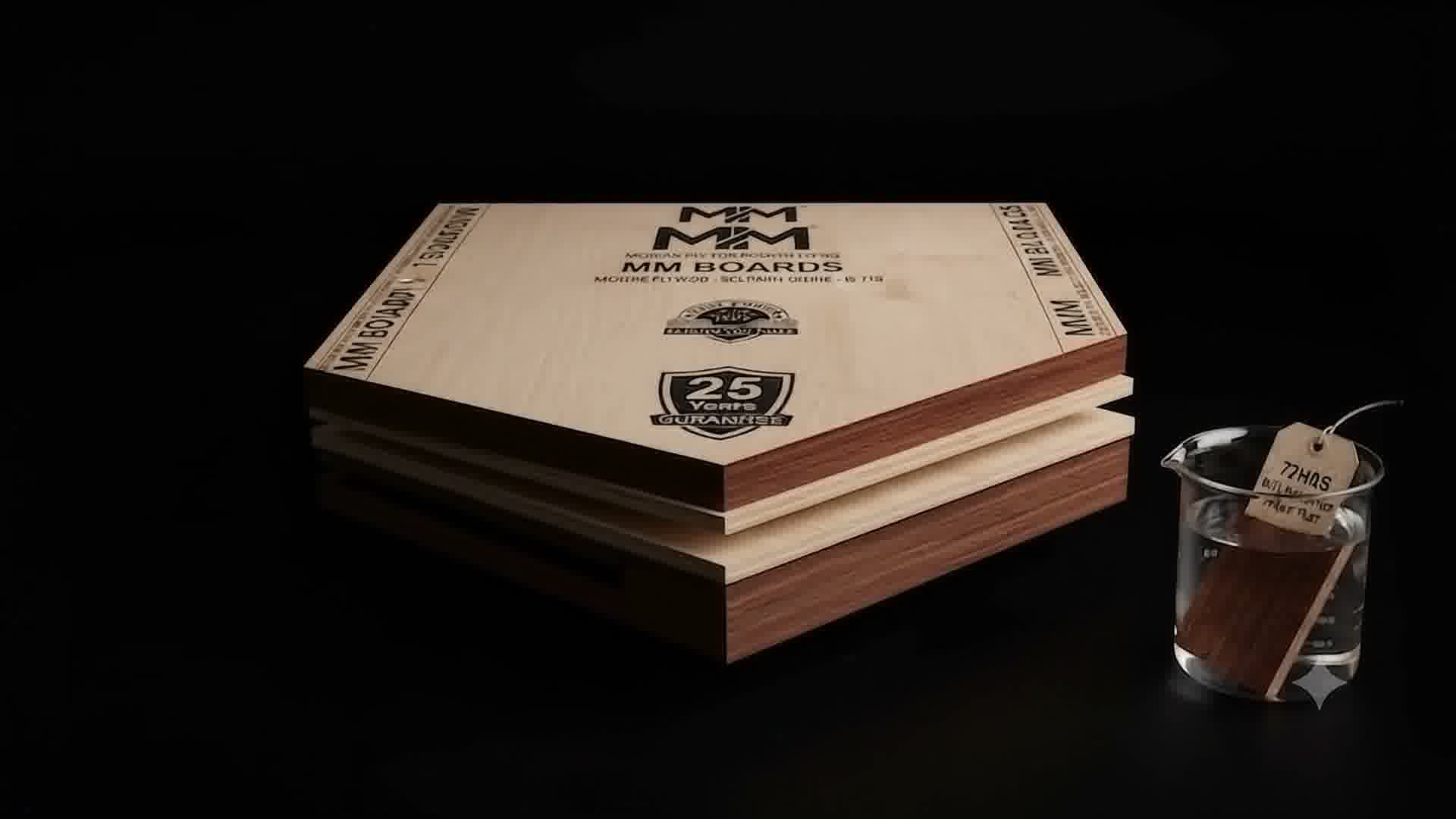

The 72-Hour Boiling Water Proof Test
Drag the thermal duration slider to test hydrothermal bonding integrity in continuous 100°C boiling water.
100°C Boiling
FRAME 300 / 300
Thermal 3D Sync: 100%
Interactive Thermal Scrubber
Continuous Hydrothermal Immersion
IS:710 mandates that marine plywood must survive boiling in water for 72 continuous hours without glue-line failure or edge separation.
Matrix Integrity Status
PASSED IS:710 72-HR MANDATE
0.0%
Boiling Temp
100.0 °C
Resin Matrix
100% PF Bonded
Delamination
0.00 mm (Zero)
* MM WOOD Boards Solitaire Marine is tested in internal quality chambers and verified by third-party testing laboratories in Hyderabad.
Architectural Versatility
Built for Extraordinary Projects
Specified by premier structural engineers and interior master craftsmen across South India.
Luxury Residential Interiors
Bespoke wall paneling, full-height walk-in wardrobes, floating vanities, and structural partitions requiring absolute planar flatness and zero warp over decades.
Grade: Solitaire IS:710 / BWR
Marine Yachts & Coastal Villas
Cruiser yacht interiors, saline docks, and oceanfront private estates exposed to corrosive coastal salt fog and persistent high humidity without decay.
Grade: Solitaire IS:710 Marine
Modular Kitchens & Wet Zones
Undermount sink cabinetry, dishwasher surrounds, and steam-exposed carcass boxes that demand uncompromised boiling water proofing.
Grade: BWP Solitaire Grade

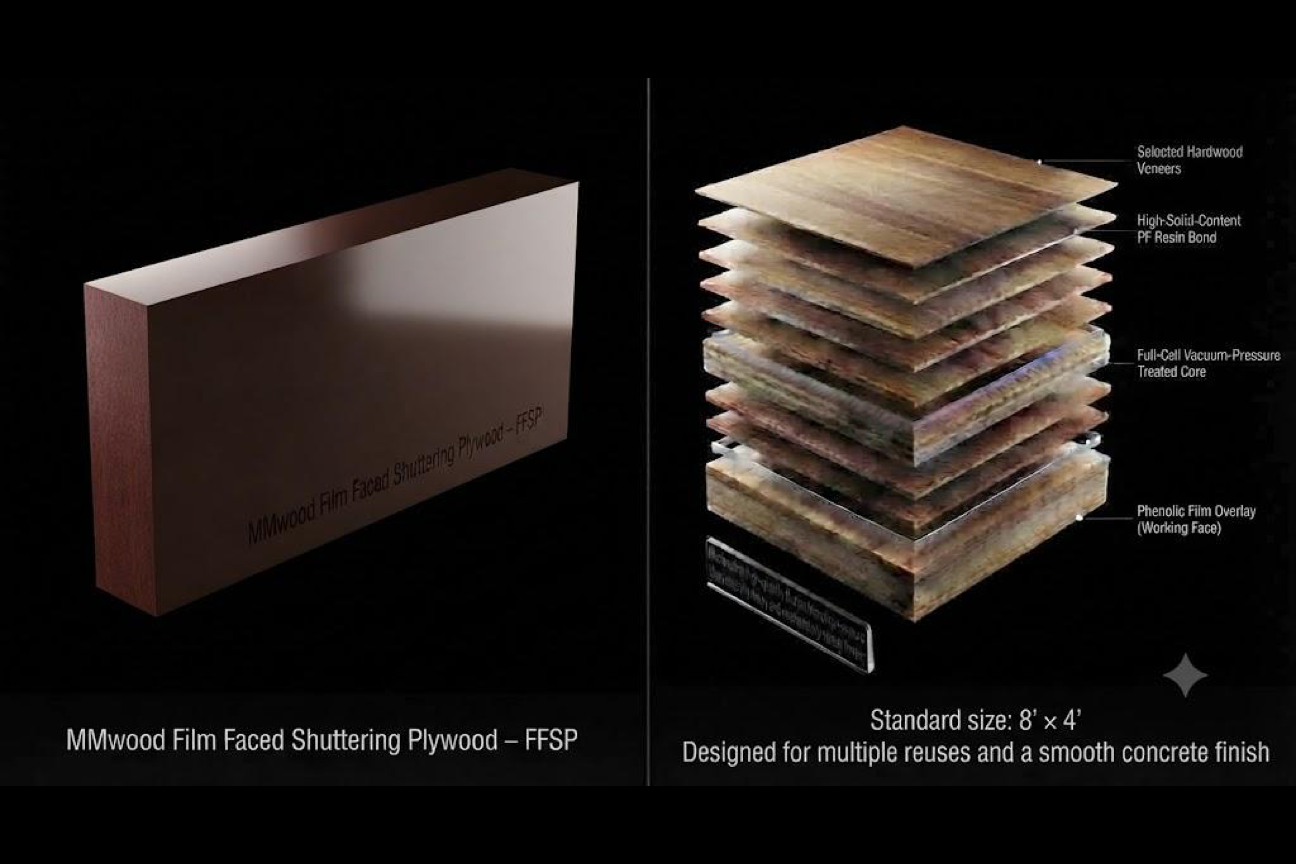

High-Load Architectural Formwork
Mirror-finish shuttering plywood engineered for multi-story concrete casting, withstanding repeated re-use and wet slurry pressure.
Grade: Calibrated Film-Faced

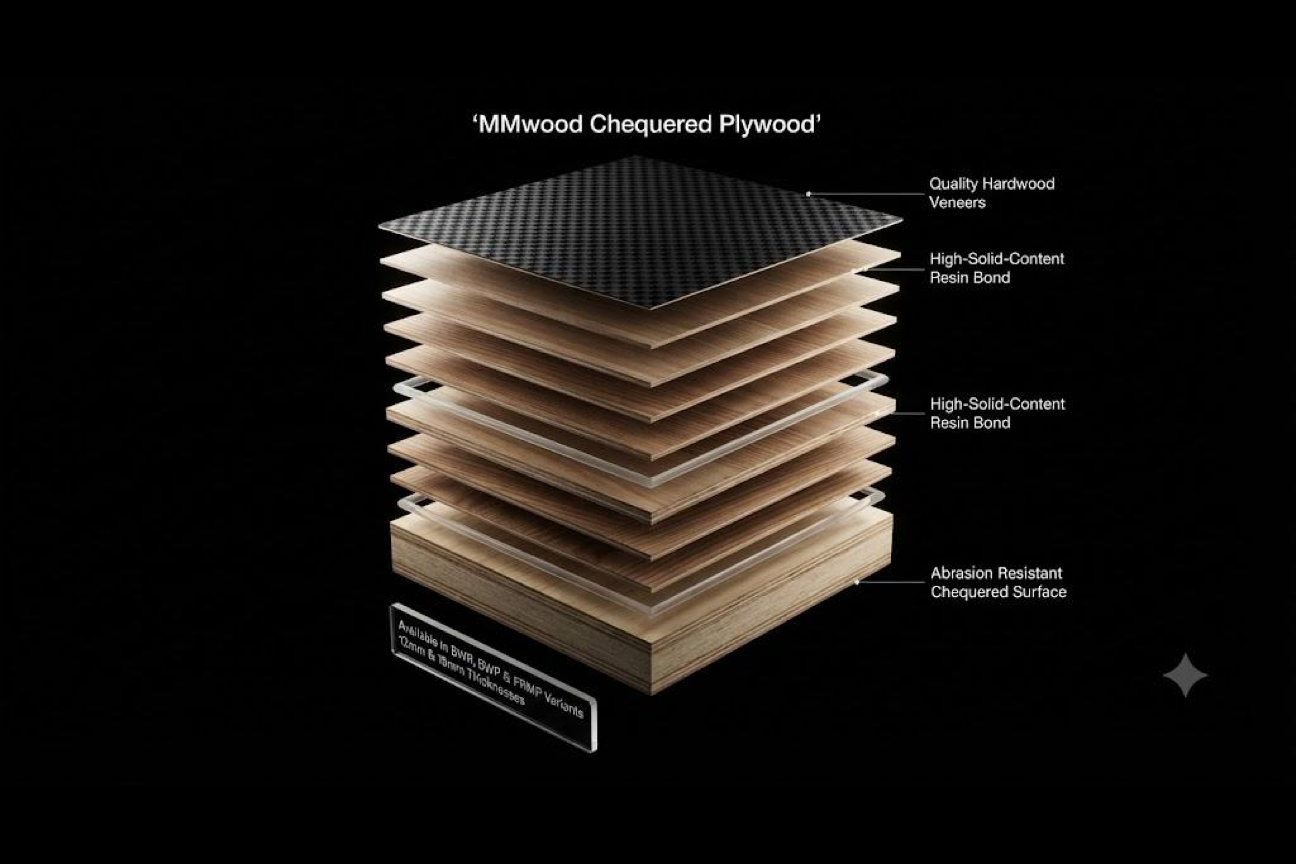

Vehicle & Heavy Transport Flooring
Diamond chequered floorboards with high dynamic slip resistance and shock absorption for city buses, rail wagons, and industrial warehouses.
Grade: Chequered Plywood
Acoustic Theaters & Auditoriums

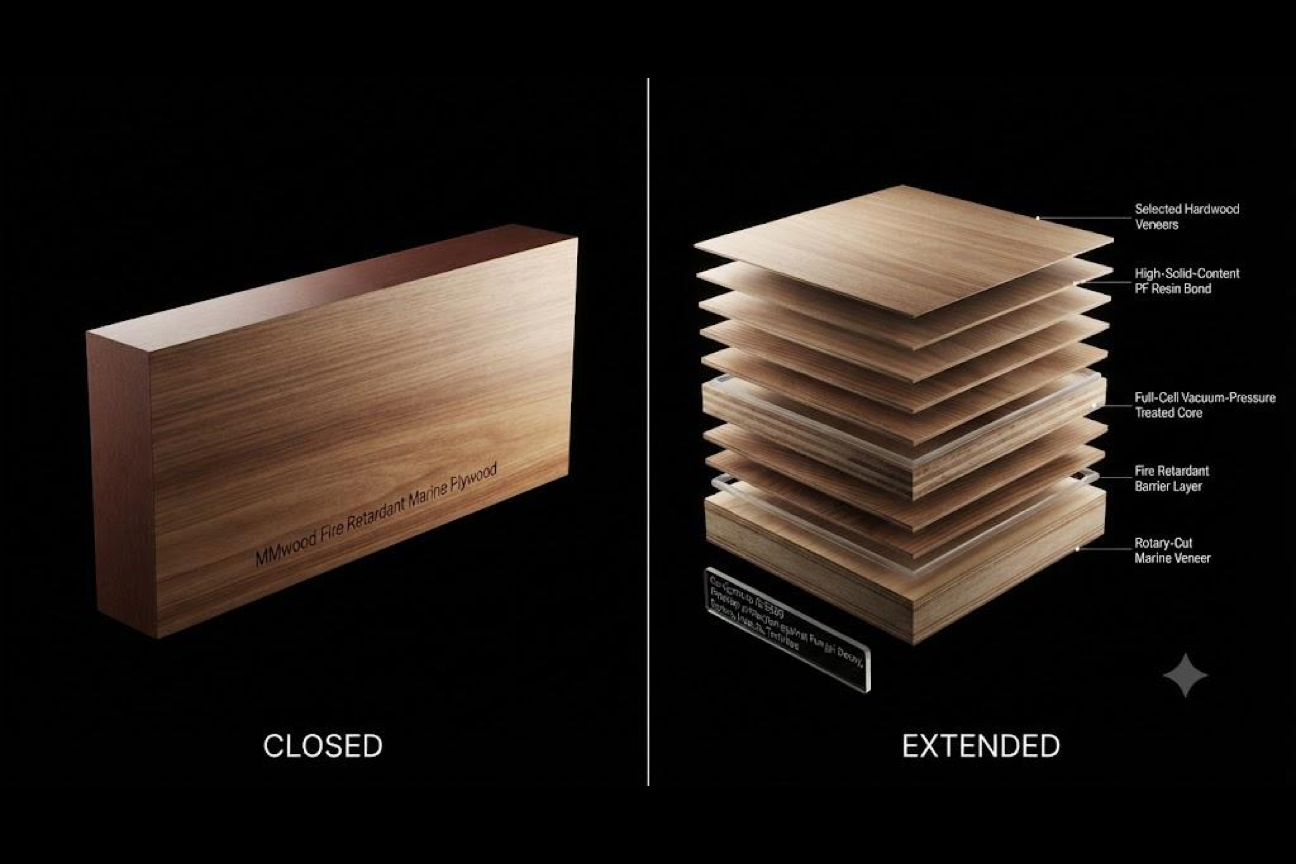

Fire-retardant marine ply complying with IS:5509 standards, ensuring slow flame penetration, self-extinction, and low smoke density in public venues.
Grade: Fire-Shield IS:5509
Engineering Reference
Technical Performance Matrix
Laboratory certified physical and mechanical parameters compliant with Bureau of Indian Standards.
| Physical / Mechanical Property | MM Marine (IS:710) | MM BWR (IS:303) | IS Mandate Standard |
|---|---|---|---|
| Boiling Water Resistance | 72 Hours Continual @ 100°C | 8 Hours @ 100°C | IS:710 (72h) / IS:303 (8h) |
| Glue Shear Strength (Dry State) | > 1,650 N | > 1,350 N | Min. 1,350 N |
| Glue Shear (Post 72h Boiling) | > 1,280 N | > 1,000 N | Min. 1,000 N |
| Modulus of Elasticity (Parallel) | > 8,600 N/mm² | > 7,200 N/mm² | Min. 7,000 N/mm² |
| Modulus of Rupture (Bending) | > 68 N/mm² | > 52 N/mm² | Min. 50 N/mm² |
| Moisture Content | 8% – 12% (Kiln Dried) | 9% – 13% | 5% – 15% |
| Volumetric Density | 800 – 840 kg/m³ | 740 – 780 kg/m³ | > 700 kg/m³ |
| Screw Holding Capacity (Face) | > 2,850 N | > 2,350 N | Min. 2,200 N |
| Preservative Chemical Retention | > 12.0 kg/m³ Vacuum Treated | > 8.0 kg/m³ | Min. 8.0 kg/m³ |
| Warranty Period | 25-Year Guarantee | 15-Year Guarantee | Manufacturer Backed |
Proprietor's Assurance
"True structural integrity is not accidental. It is the result of uncompromising wood chemistry, flawless calibration, and absolute honesty in every ply."
BM
B. Mahesh Reddy
Proprietor, MM WOOD Boards & Laminates Private Limited • Hyderabad
25+
Years of Structural Excellence in Hyderabad
100%
Gurjan Hardwood Core Verification
145°C
Hydraulic Thermal Curing Under 16 kg/cm²
5,000+
Prestigious Projects Supplied Across India
